About Bbdim7 — uncommon voicings

Bbdim7 adds Abb♭♭7 to . Its four notes, Bb, Db, Fb and Abb, divide the octave into equal minor thirds.

Move the shape three frets and it repeats the same pitches under a new root name. That symmetry helps it connect steadier chords from several directions.

Also written Bb°7, Bbo7 or Bb diminished 7.

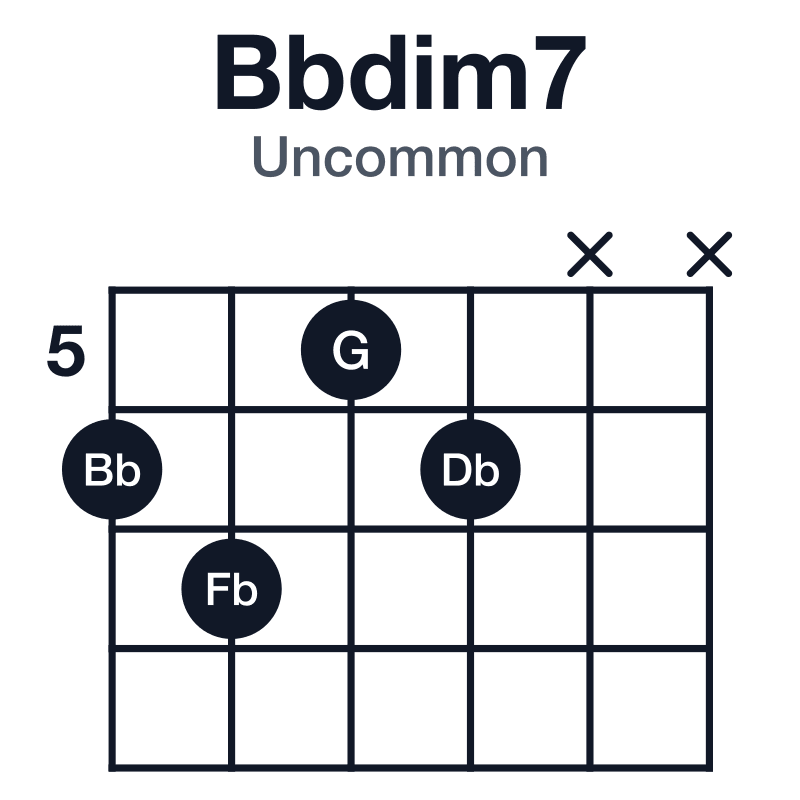

Bbdim7 uncommon guitar chord diagram: Bb, Db, Fb, G, played 6756xx
Bbdim7 uncommon guitar chord voicing: 6-7-5-6-x-x.

What these less common shapes are

How to use Bbdim7

1Between IV and I

IV – i°7 – I

Bbdim7 shares its root with Bb and slips in between Eb and the I. It isn’t a new harmony, only decoration: two notes hold, and the rest move by step into the home chord.

Listen for: The IV’s root rises a half step, then another, into the fifth of the I, over a bass that never moves.

Heard in“True Love”“Calendar Girl”“Daydream”

2Leading into the chord a half step up

I – ♯i°7 – ii

Bbdim7 is the dominant seventh flat nine of the chord a half step above it, with the root left out. Any of its four notes can be the one that rises, so it can lead into four chords; between Amaj7 and Bm7 it walks the bass up by half steps.

Listen for: The bass climbs a half step at a time, from the root of the I to the root of the ii.

Other uses

From the books, without a worked example
  • The vii°7 of a minor key
    vii°7 – i

    Bbdim7 occurs naturally in B minor: the harmonic minor scale builds it on the leading tone, a half step below Bm.

    1. Bbdim7
    2. Bm
  • A way into a new key
    a modulation

    Played after A#maj7, Bbdim7 can lead into Bmaj7, and so into a new key a half step up. Since any of its notes can act as the leading tone, one diminished chord can lead into four keys.

    1. A#maj7
    2. Bbdim7
    3. Bmaj7
  • Alternating with a sixth chord
    I6 – vii°7 – I6

    Alternating B6 and Bbdim7 is the sixth–diminished sound: the diminished chord is the V7♭9 of B6 with its root left out.

    1. B6
    2. Bbdim7
    3. B6

    Go to the B6 page to hear it →

What to play over Bbdim7

Useful scales

  • +CEbGbA

    Contains Bbdim7 and adds second, fourth, sharp fifth and major seventh.

  • +CbDFAb

    Contains Bbdim7 and adds flat second, major third, fifth and flat seventh.

Every scale

Chords near Bbdim7

Remove a note

Change one note

  • 2nd inversion
    2nd inversion
    Fb → F

    Raise the flat fifth to the fifth.

    See Bbm6 chord →
  • 2nd inversion
    2nd inversion
    G → Ab

    Raise the diminished seventh to the flat seventh.

    See Bbm7b5 chord →
  • open strings
    open strings
    G → A

    Replace the diminished seventh with the major seventh.

    See BbmMaj7b5 chord →

Diminished and half-diminished chords on every root
