Eb7b5

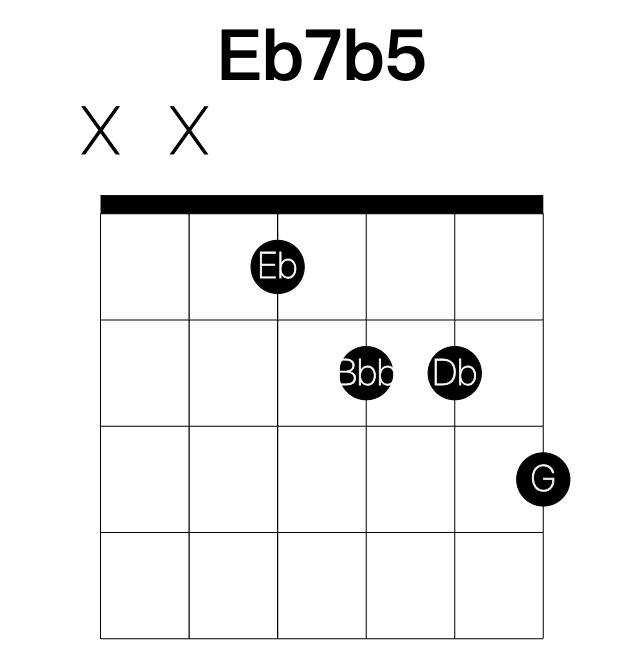

Eb7b5 is Eb, G, A and Db, a seven flat five. The shape this page opens on is written xx1223, lowest string first.

Also written Eb7(b5), Eb7-5 or Eb7♭5. The same chord either way; which spelling you meet depends on who wrote the chart.

There are 6 common shapes for Eb7b5 on the guitar, and 35 derived voicings in 4 families.

The common shapes, written lowest string first: xx1223, x45645, xx5645, x6768x, 11-x-11-12-10-x, x-x-13-14-14-15.

Shell. Root, third and seventh: the guide tones fix the quality, so the fifth is dropped. That is what leaves a string free, so pick a tension to put on top. Eb7b5 has xx1025, x6x025, x6x685, 11-x-11-12-10-x, 11-10-11-14-x-x, x-6-5-6-10-x.

Drop 2. A close-position chord with the second voice from the top lowered an octave. Sits on four adjacent strings. Eb7b5 has x0102x, xx1223, xx5645, 5656xx, x6768x, xx7889, x-x-11-12-10-11, 11-12-11-12-x-x.

Drop 3. The third voice from the top lowered an octave. The dropped voice becomes the bass, which is why a string is skipped. Eb7b5 has 3x122x, x4x243, 5x564x, x6x685, 9x788x, x-10-x-8-10-9, 11-x-11-12-10-x, x-12-x-12-14-11.

Open string. An open string left ringing against a fretted grip. Because it costs no finger, it sounds a note the closed shape has none left for -- a tension on top, or a pedal root underneath. Either a familiar grip with open strings added, or a shape so sparse the open strings carry the chord. These belong to their key rather than to a shape, so D, A, G and E have many and Eb a handful. Eb7b5 has 56560x, 5x5640, x45240, x05600, x47000, x03020.

Tensions. A shell of Eb7b5, root, third and seventh, leaves a string free, and the tones that belong over it are the b9 (Fb), the 9 (F), the #9 (F#), the b13 (Cb) and the 13 (C).

The common shapes and the derived voicings come from different places, and both are explained in where the chords and the theory come from.
