Bdim7 guitar chord

1 of 2
Inversion
  • Tap a note to hear it
  • Arrows change position
  • Fingers, notes or intervals
  • Play the chord

About Bdim7 — uncommon voicings

Bdim7 adds to . Its four notes, B, D, F and Ab, divide the octave into equal minor thirds.

Move the shape three frets and it repeats the same pitches under a new root name. That symmetry helps it connect steadier chords from several directions.

Also written B°7, Bo7 or B diminished 7.

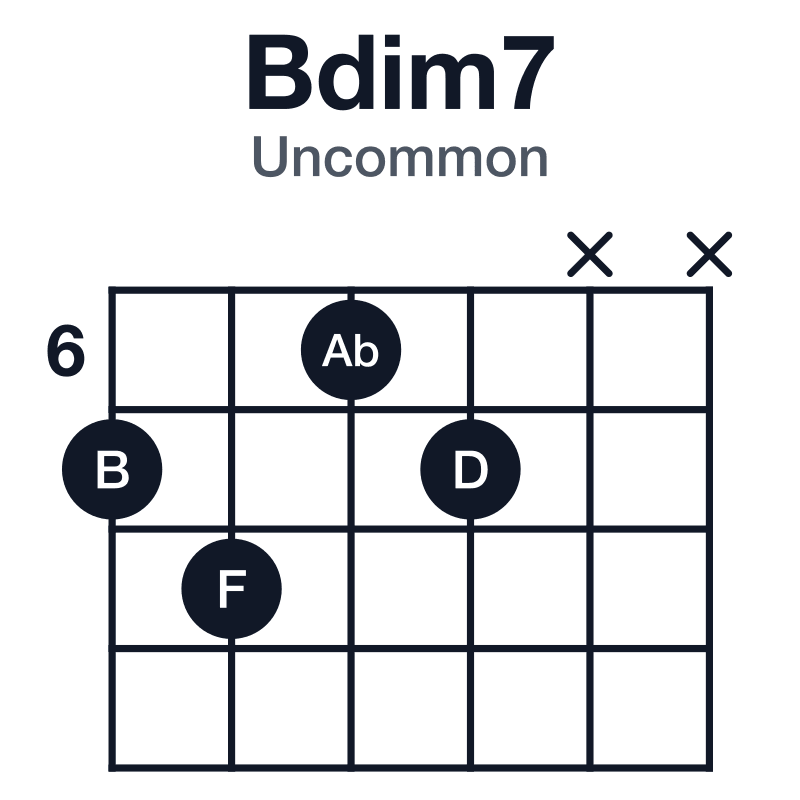

Bdim7 uncommon guitar chord diagram: B, D, F, Ab, played 7867xx
Bdim7 uncommon guitar chord voicing: 7-8-6-7-x-x.

What these less common shapes are

How to use Bdim7

1Between IV and I

IV – i°7 – I

Bdim7 shares its root with B and slips in between E and the I. It isn’t a new harmony, only decoration: two notes hold, and the rest move by step into the home chord.

Listen for: The IV’s root rises a half step, then another, into the fifth of the I, over a bass that never moves.

Heard in“True Love”“Calendar Girl”“Daydream”

2Leading into the chord a half step up

I – ♯i°7 – ii

Bdim7 is the dominant seventh flat nine of the chord a half step above it, with the root left out. Any of its four notes can be the one that rises, so it can lead into four chords; between Bbmaj7 and Cm7 it walks the bass up by half steps.

Listen for: The bass climbs a half step at a time, from the root of the I to the root of the ii.

Other uses

From the books, without a worked example
  • The vii°7 of a minor key
    vii°7 – i

    Bdim7 occurs naturally in C minor: the harmonic minor scale builds it on the leading tone, a half step below Cm.

    1. Bdim7
    2. Cm
  • A way into a new key
    a modulation

    Played after Bmaj7, Bdim7 can lead into Cmaj7, and so into a new key a half step up. Since any of its notes can act as the leading tone, one diminished chord can lead into four keys.

    1. Bmaj7
    2. Bdim7
    3. Cmaj7
  • Alternating with a sixth chord
    I6 – vii°7 – I6

    Alternating C6 and Bdim7 is the sixth–diminished sound: the diminished chord is the V7♭9 of C6 with its root left out.

    1. C6
    2. Bdim7
    3. C6

    Go to the C6 page to hear it →

What to play over Bdim7

Useful scales

  • +C#EGA#

    Contains Bdim7 and adds second, fourth, sharp fifth and major seventh.

  • +CD#F#A

    Contains Bdim7 and adds flat second, major third, fifth and flat seventh.

Every scale

Chords near Bdim7

Remove a note

Change one note

  • 2nd inversion
    2nd inversion
    F → F#

    Raise the flat fifth to the fifth.

    See Bm6 chord →
  • 2nd inversion
    2nd inversion
    Ab → A

    Raise the diminished seventh to the flat seventh.

    See Bm7b5 chord →
  • Ab → A#

    Replace the diminished seventh with the major seventh.

    See BmMaj7b5 chord →

Diminished and half-diminished chords on every root

The common shapes and the derived voicings come from different places, and both are explained in how this site is built.
