14 drop 2 voicings of B7 — B, D#, F# and A, on 3 string sets, in 4 inversions.
What a drop 2 is. A close-position chord with the second voice from the top lowered an octave. Sits on four adjacent strings.
| Shape | String set | Inversion | Position | Difficulty |
|---|---|---|---|---|
| 2212xx | strings 6–5–4–3 | 2nd inversion — F# in the bass, the 5th | open position | easy |
| xx1202 | strings 4–3–2–1 | 1st inversion — D# in the bass, the 3rd | open position | easy |
| x2424x | strings 5–4–3–2 | Root position — B in the bass, the root | around fret 2 | easy |
| xx4445 | strings 4–3–2–1 | 2nd inversion — F# in the bass, the 5th | around fret 4 | easy |

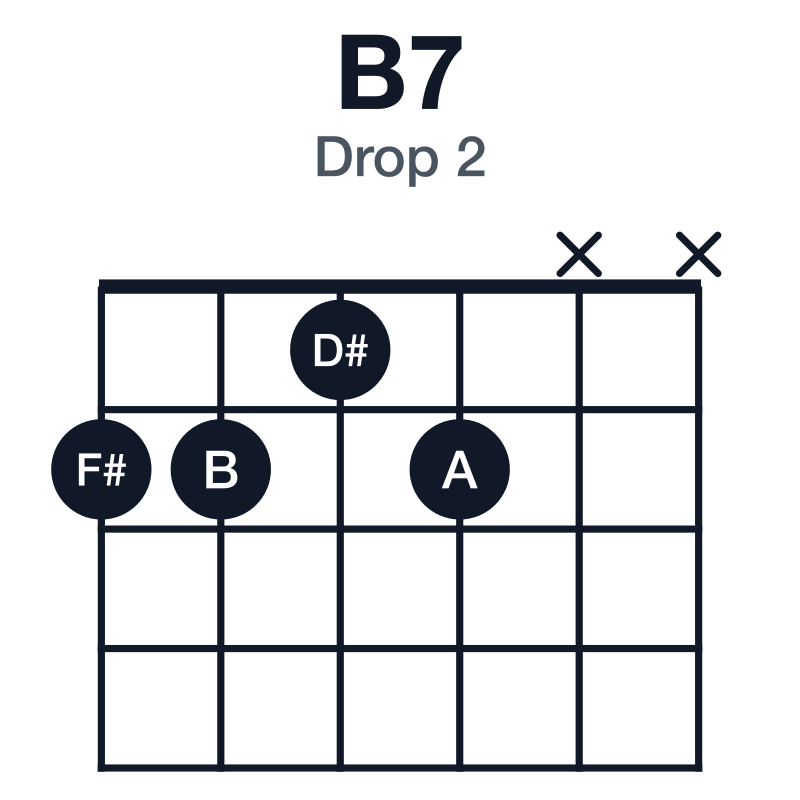

| 5644xx | strings 6–5–4–3 | 3rd inversion — A in the bass, the 7th | around fret 4 | easy |
| xx7877 | strings 4–3–2–1 | 3rd inversion — A in the bass, the 7th | around fret 7 | easy |
| 7978xx | strings 6–5–4–3 | Root position — B in the bass, the root | around fret 7 | easy |
| x-9-9-8-10-x | strings 5–4–3–2 | 2nd inversion — F# in the bass, the 5th | around fret 8 | easy |
| x-x-9-11-10-11 | strings 4–3–2–1 | Root position — B in the bass, the root | around fret 9 | easy |
| x-12-13-11-12-x | strings 5–4–3–2 | 3rd inversion — A in the bass, the 7th | around fret 11 | easy |
| x-x-13-14-12-14 | strings 4–3–2–1 | 1st inversion — D# in the bass, the 3rd | around fret 12 | easy |
| 14-14-13-14-x-x | strings 6–5–4–3 | 2nd inversion — F# in the bass, the 5th | around fret 13 | easy |
| x6747x | strings 5–4–3–2 | 1st inversion — D# in the bass, the 3rd | around fret 4 | moderate |
| 11-12-9-11-x-x | strings 6–5–4–3 | 1st inversion — D# in the bass, the 3rd | around fret 9 | moderate |
Shapes are written lowest string first, so x is a string you do not play. To hear these, play them, or see them against the chord’s other shapes, open the B7 chord page.
