12 drop 2 voicings of Abm9 — Ab, Cb, Eb, Gb and Bb, on 3 string sets, in 4 inversions.
What a drop 2 is. A close-position chord with the second voice from the top lowered an octave. Sits on four adjacent strings.
| Shape | String set | Inversion | Position | Difficulty |
|---|---|---|---|---|
| 4243xx | strings 6–5–4–3 | Root position — Ab in the bass, the root | around fret 2 | easy |
| xx4304 | strings 4–3–2–1 | 3rd inversion — Gb in the bass, the 7th | around fret 3 | easy |
| x-11-9-11-11-x | strings 5–4–3–2 | Root position — Ab in the bass, the root | around fret 9 | easy |
| x1410x | strings 5–4–3–2 | 9th in bass — Bb in the bass, the 9th | open position | moderate |
| xx6476 | strings 4–3–2–1 | Root position — Ab in the bass, the root | around fret 4 | moderate |

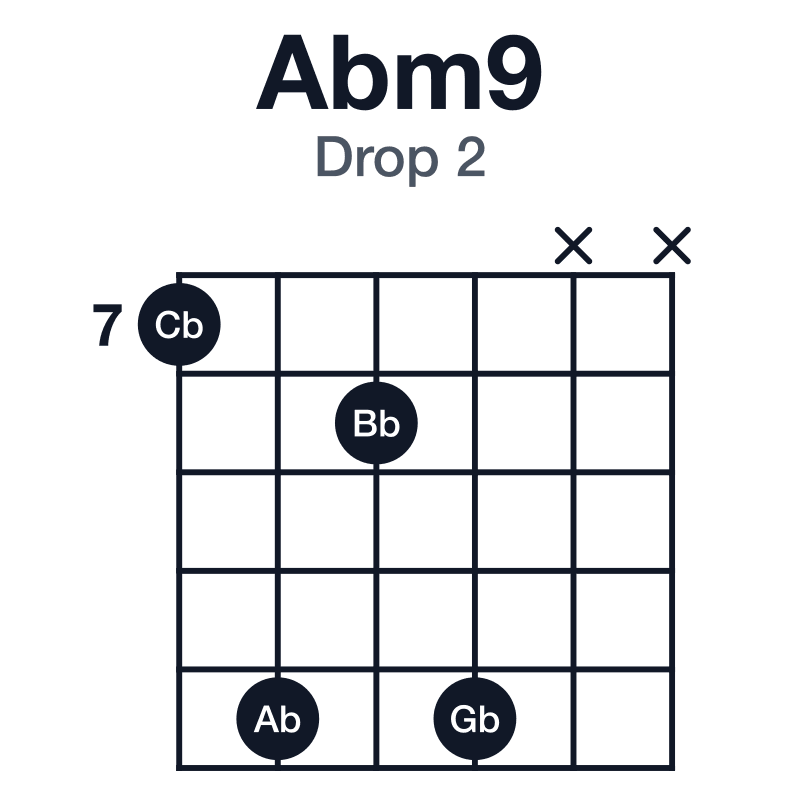

| 7-11-8-11-x-x | strings 6–5–4–3 | 1st inversion — Cb in the bass, the 3rd | around fret 7 | moderate |
| x-x-8-11-9-7 | strings 4–3–2–1 | 9th in bass — Bb in the bass, the 9th | around fret 7 | moderate |
| x2637x | strings 5–4–3–2 | 1st inversion — Cb in the bass, the 3rd | around fret 2 | stretch |
| 6964xx | strings 6–5–4–3 | 9th in bass — Bb in the bass, the 9th | around fret 4 | stretch |
| x9849x | strings 5–4–3–2 | 3rd inversion — Gb in the bass, the 7th | around fret 4 | stretch |
| x-x-9-13-11-14 | strings 4–3–2–1 | 1st inversion — Cb in the bass, the 3rd | around fret 9 | stretch |
| 14-13-9-13-x-x | strings 6–5–4–3 | 3rd inversion — Gb in the bass, the 7th | around fret 9 | stretch |
Shapes are written lowest string first, so x is a string you do not play. To hear these, play them, or see them against the chord’s other shapes, open the Abm9 chord page.
