Fdim7 guitar chord

1 of 4
Inversion
  • Tap a note to hear it
  • Arrows change position
  • Fingers, notes or intervals
  • Play the chord

About Fdim7 — uncommon voicings

Fdim7 adds Ebb♭♭7 to . Its four notes, F, Ab, Cb and Ebb, divide the octave into equal minor thirds.

Move the shape three frets and it repeats the same pitches under a new root name. That symmetry helps it connect steadier chords from several directions.

Also written F°7, Fo7 or F diminished 7.

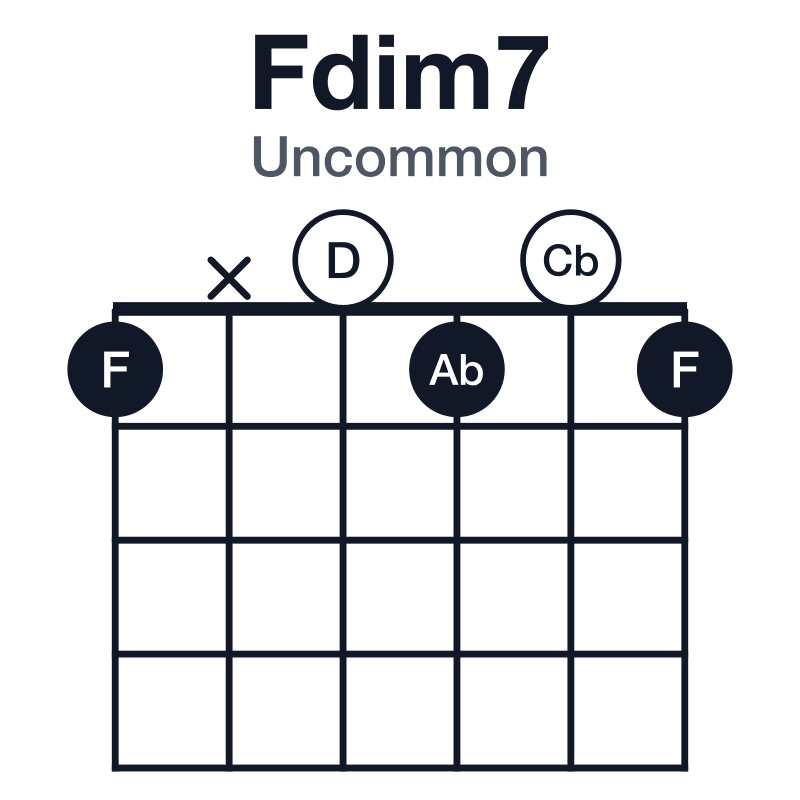

Fdim7 uncommon guitar chord diagram: F, Ab, Cb, D, played 1x0101
Fdim7 uncommon guitar chord voicing: 1-x-0-1-0-1.

What these less common shapes are

How to use Fdim7

1Between IV and I

IV – i°7 – I

Fdim7 shares its root with F and slips in between Bb and the I. It isn’t a new harmony, only decoration: two notes hold, and the rest move by step into the home chord.

Listen for: The IV’s root rises a half step, then another, into the fifth of the I, over a bass that never moves.

Heard in“True Love”“Calendar Girl”“Daydream”

2Leading into the chord a half step up

I – ♯i°7 – ii

Fdim7 is the dominant seventh flat nine of the chord a half step above it, with the root left out. Any of its four notes can be the one that rises, so it can lead into four chords; between Emaj7 and F#m7 it walks the bass up by half steps.

Listen for: The bass climbs a half step at a time, from the root of the I to the root of the ii.

Other uses

From the books, without a worked example
  • The vii°7 of a minor key
    vii°7 – i

    Fdim7 occurs naturally in F♯ minor: the harmonic minor scale builds it on the leading tone, a half step below F#m.

    1. Fdim7
    2. F#m
  • A way into a new key
    a modulation

    Played after Fmaj7, Fdim7 can lead into Gbmaj7, and so into a new key a half step up. Since any of its notes can act as the leading tone, one diminished chord can lead into four keys.

    1. Fmaj7
    2. Fdim7
    3. Gbmaj7
  • Alternating with a sixth chord
    I6 – vii°7 – I6

    Alternating Gb6 and Fdim7 is the sixth–diminished sound: the diminished chord is the V7♭9 of Gb6 with its root left out.

    1. Gb6
    2. Fdim7
    3. Gb6

    Go to the Gb6 page to hear it →

What to play over Fdim7

Useful scales

  • +GBbDbE

    Contains Fdim7 and adds second, fourth, sharp fifth and major seventh.

  • +GbACEb

    Contains Fdim7 and adds flat second, major third, fifth and flat seventh.

Every scale

Chords near Fdim7

Remove a note

Change one note

Diminished and half-diminished chords on every root

The common shapes and the derived voicings come from different places, and both are explained in how this site is built.
