14 drop 2 voicings of F7 — F, A, C and Eb, on 3 string sets, in 4 inversions.
What a drop 2 is. A close-position chord with the second voice from the top lowered an octave. Sits on four adjacent strings.
| Shape | String set | Inversion | Position | Difficulty |
|---|---|---|---|---|
| xx1211 | strings 4–3–2–1 | 3rd inversion — Eb in the bass, the 7th | open position | easy |
| 1312xx | strings 6–5–4–3 | Root position — F in the bass, the root | open position | easy |

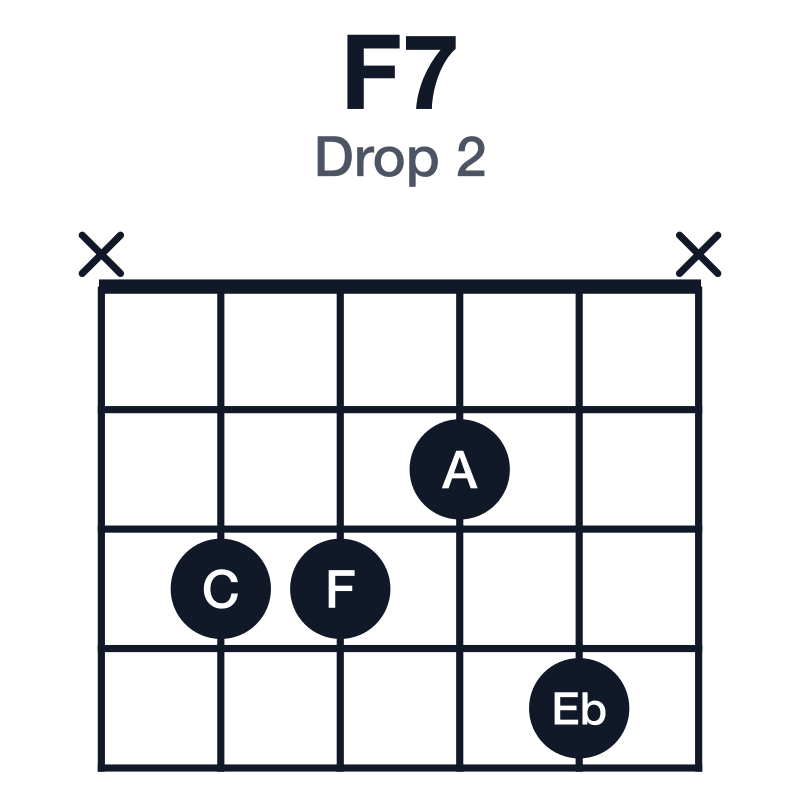

| x3324x | strings 5–4–3–2 | 2nd inversion — C in the bass, the 5th | around fret 2 | easy |
| xx3545 | strings 4–3–2–1 | Root position — F in the bass, the root | around fret 3 | easy |
| x6756x | strings 5–4–3–2 | 3rd inversion — Eb in the bass, the 7th | around fret 5 | easy |
| xx7868 | strings 4–3–2–1 | 1st inversion — A in the bass, the 3rd | around fret 6 | easy |
| 8878xx | strings 6–5–4–3 | 2nd inversion — C in the bass, the 5th | around fret 7 | easy |
| x-8-10-8-10-x | strings 5–4–3–2 | Root position — F in the bass, the root | around fret 8 | easy |
| x-x-10-10-10-11 | strings 4–3–2–1 | 2nd inversion — C in the bass, the 5th | around fret 10 | easy |
| 11-12-10-10-x-x | strings 6–5–4–3 | 3rd inversion — Eb in the bass, the 7th | around fret 10 | easy |
| x-x-13-14-13-13 | strings 4–3–2–1 | 3rd inversion — Eb in the bass, the 7th | around fret 13 | easy |
| 13-15-13-14-x-x | strings 6–5–4–3 | Root position — F in the bass, the root | around fret 13 | easy |
| 5635xx | strings 6–5–4–3 | 1st inversion — A in the bass, the 3rd | around fret 3 | moderate |
| x-12-13-10-13-x | strings 5–4–3–2 | 1st inversion — A in the bass, the 3rd | around fret 10 | moderate |
Shapes are written lowest string first, so x is a string you do not play. To hear these, play them, or see them against the chord’s other shapes, open the F7 chord page.
